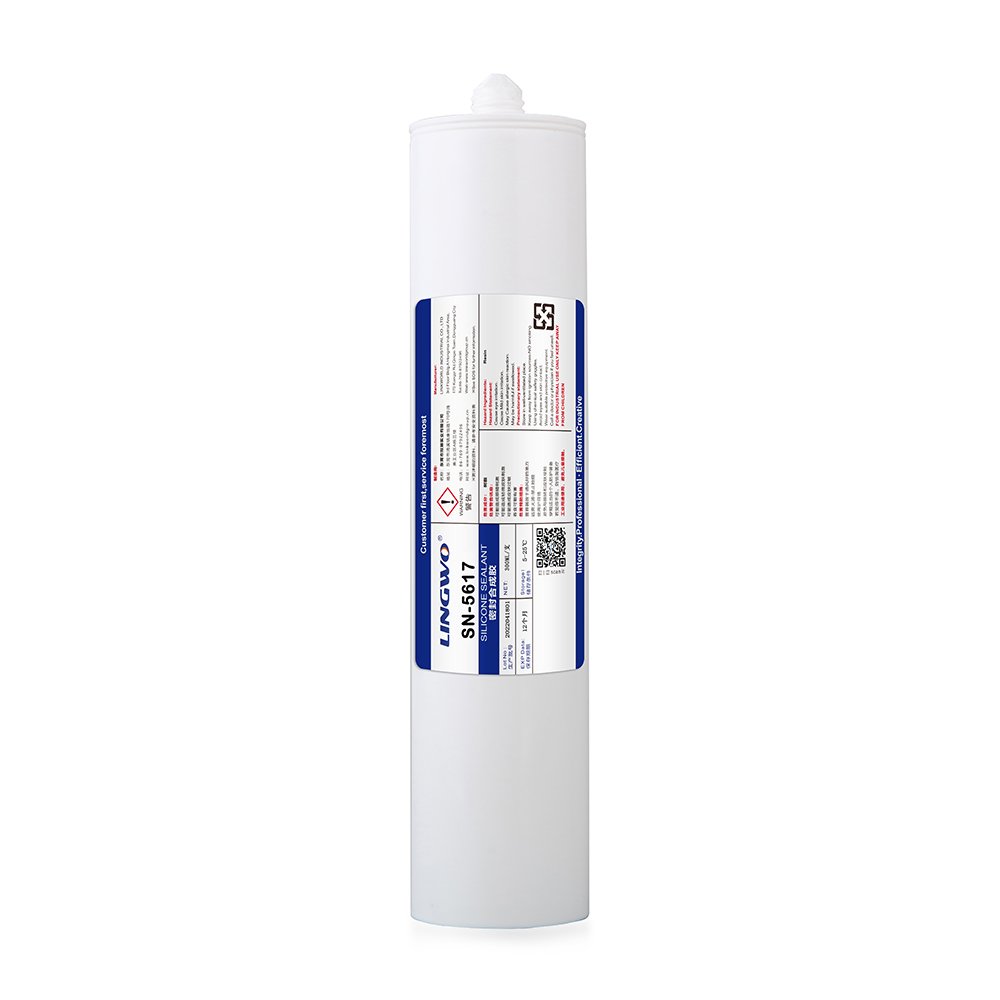

SN-5617

Test item: Test results
Appearance: Black/white uniform paste like substance
Density (g/cm3): 1.24
Dry time (min): 3-5
Hardness (share A): 40
Tensile strength (Mpa): 1.65
Tensile elongation at break (%): 300
Working temperature (℃): -50-200
Short time temperature (℃): 250
Packaging specifications: 30ml, 50ml, 300ml
Storage period/month: within 6 months

Product Features
1. Neutral curing, fast surface drying speed (3-5 minutes);
2. Has good adhesion to various plastics, glass, and metals such as PC and ABS;
3. Insulation, moisture resistance, and non swelling;

Product Usage
This product is mainly used for insulation bonding and sealing of high-voltage parts such as AC, DC power supplies, inverters, etc; It can also be used for bonding and fixing electronic components such as PCB sensitive components, capacitors, and transistors.

Instructions for Use
Cleaning indicates that the surface of the adhered or coated material should be cleaned to remove rust, dust, and oil stains;
Glue application: Use a blade to cut open the pipe mouth, cover it with a matching needle, and use a glue gun to squeeze the glue solution onto the cleaned surface that needs to be glued, so that it is evenly distributed. Close and fix the adhesive surface together;
Curing: In the presence of water vapor in the air, the curing process is a solidification process from the surface to the interior.

Precautions
1. Keep away from children for storage;
2. Special attention should be paid to maintaining good ventilation in the workplace;
If the eyes accidentally come into contact, they should be immediately washed with plenty of water and then treated by a doctor;
If accidentally ingesting sealant, seek medical attention immediately.

Storage conditions
1. Store in a cool and dry place between 8 ℃ and 28 ℃;
2. Do not be exposed to ultraviolet or sunlight.
