PUR Hot Melt Adhesive: The “Flexible Bonding Expert” in Electronics Manufacturing
As electronic device

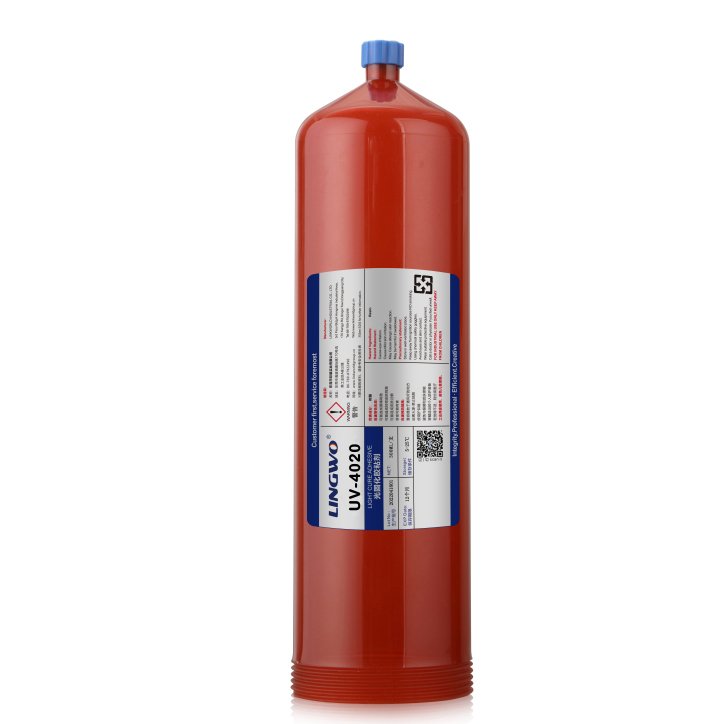

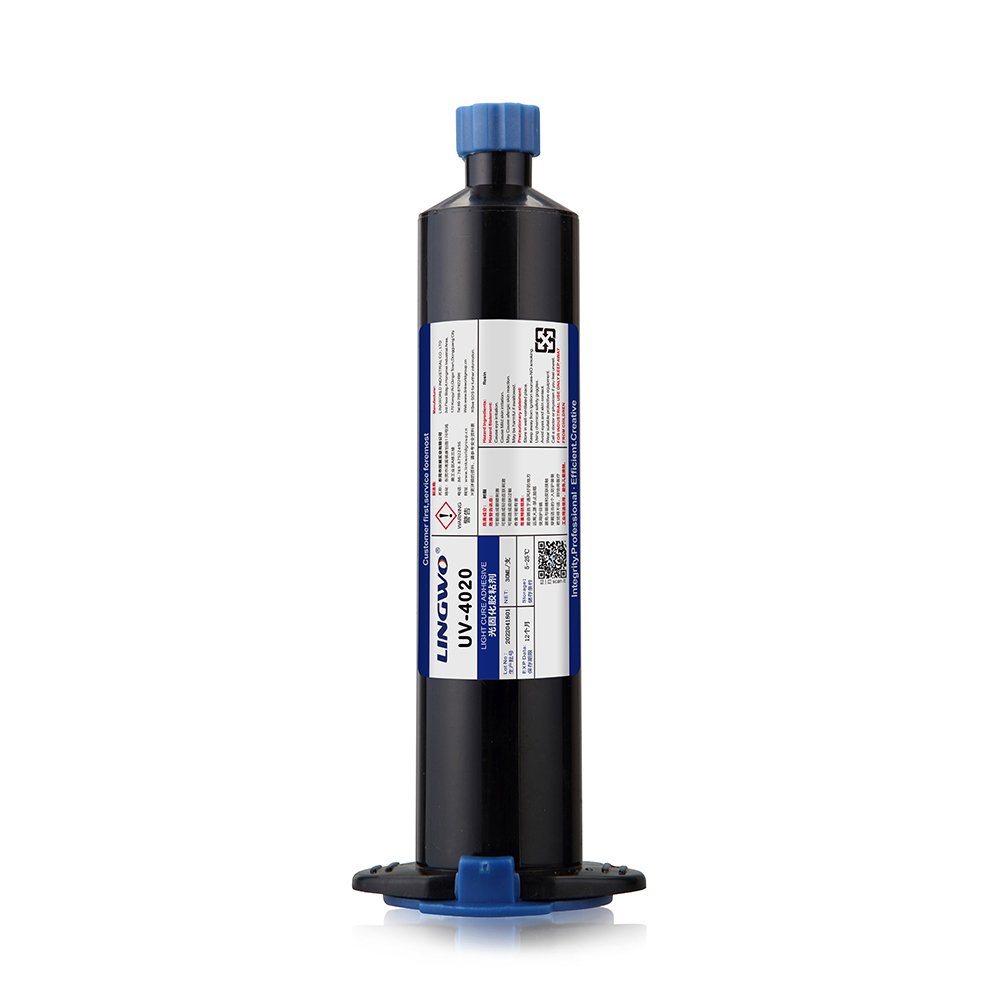

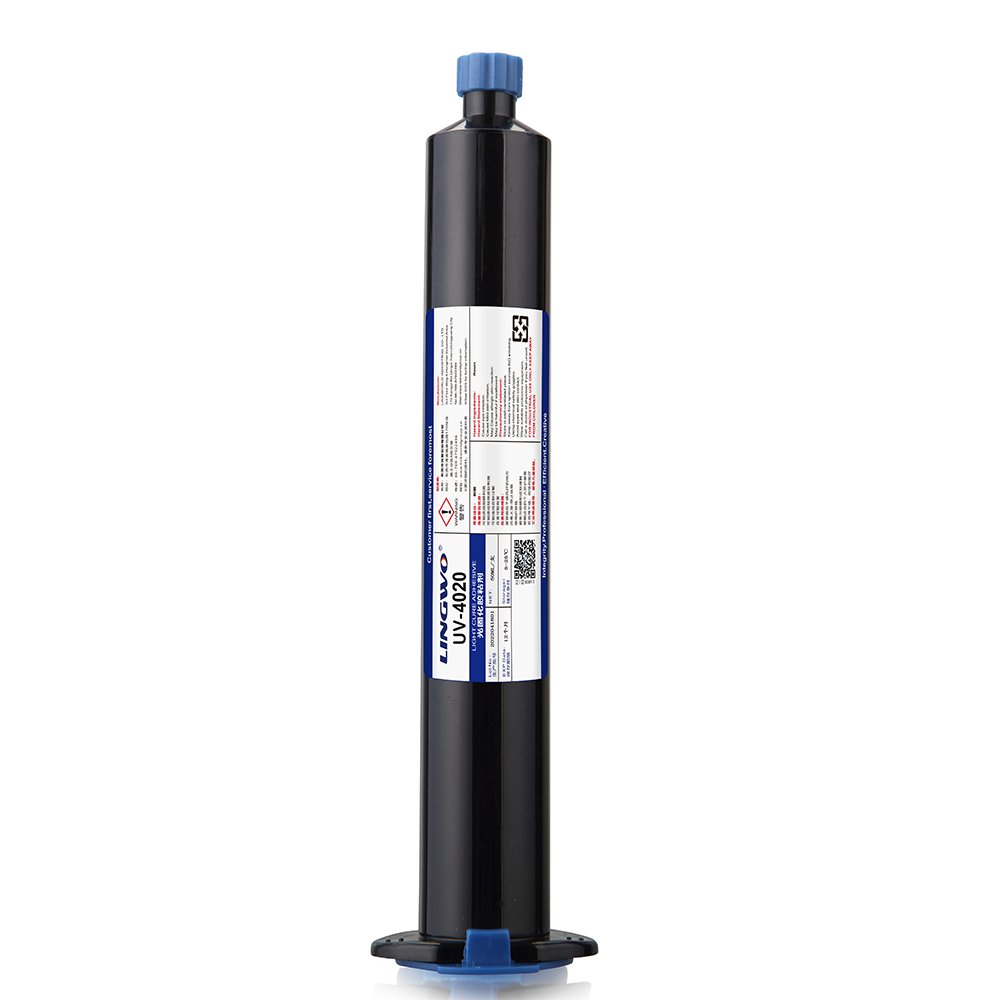

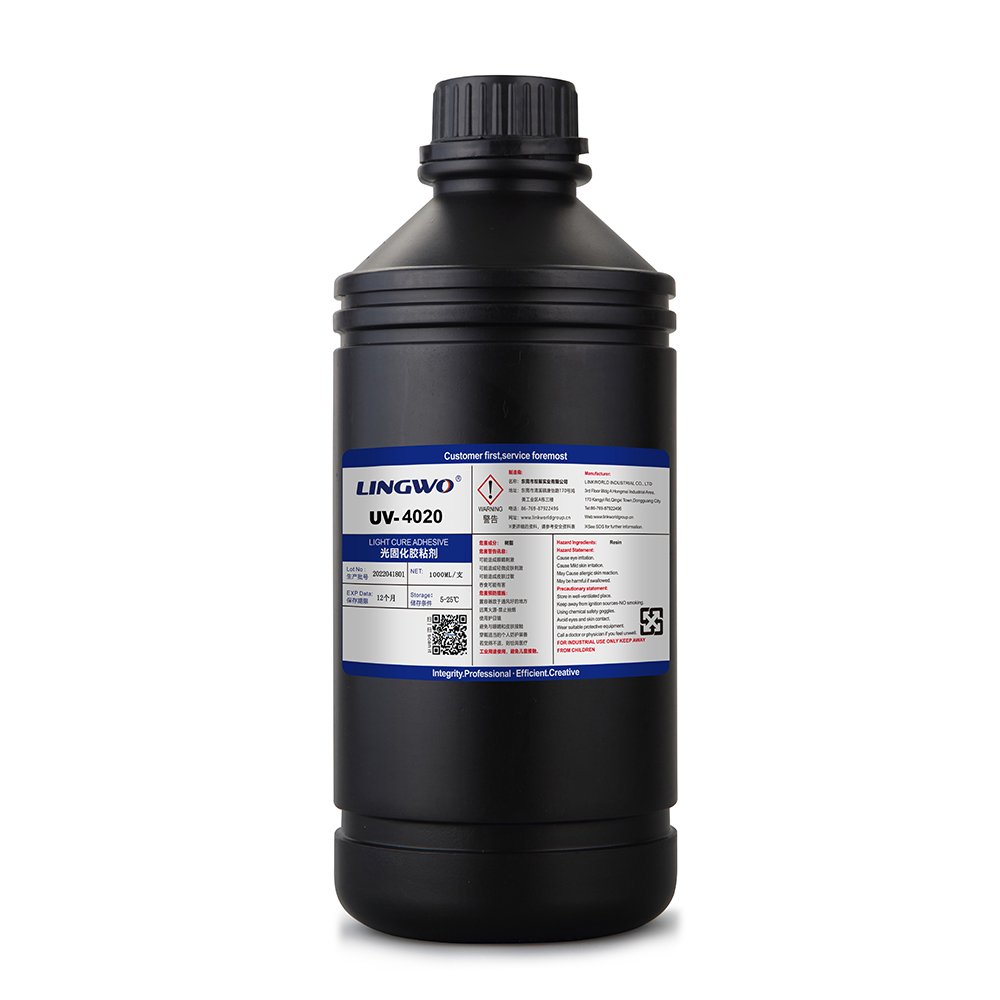

Model: UV-4020
Color: Transparent
Curing method: UV curing
Initial solidification time: 6S
Hardness: A33
Temperature range: -54 ℃~120 ℃, short-term can be at 150 ℃
Packaging: 30ml, 50ml, 300ml, 1000ml
No Documents
Phone: 18278134463 (Miss Liang)
Email: Jack@linkworldgroup.cn
Address: 5th Floor, Building 4, No. 459 Xiecao Road, Xiegang Town, Dongguan City
Have any Questions?
Feel free to Get in touch
Model: UV-4020
Color: Transparent
Curing method: UV curing
Initial solidification time: 6S
Hardness: A33
Temperature range: -54 ℃~120 ℃, short-term can be at 150 ℃
Packaging: 30ml, 50ml, 300ml, 1000ml
Product Features
Single component, medium viscosity, solvent-free;
Excellent adhesion, resistance to cold and hot impacts, and flexible adhesive layer.
Stable physical properties, UV resistance, stress resistance, and aging resistance.
Suitable occasions
This product is mainly used for speakers such as laptops, mobile phones, Bluetooth earphones, etc
Instructions for use
Preprocessing: To achieve the desired bonding performance, the surface of the material being bonded should be clean and free of grease.
Glue application: This product should be dispensed using a glue dispenser with a black feeding tube.
Curing: This product is sensitive to ultraviolet radiation and can be cured under ultraviolet/or visible light with sufficient intensity. The curing speed and final curing depth depend on the light intensity, spectral distribution of the light source, exposure time, and transparency of the adhesive material.
Type: UV Adhesive
Color: Red
Viscosity: 9000-14000CPS
Hardness (Shore D): 78
Package:30g, 50g, 250g, 1kg, 20kg
Model: UV-4018
Color: Red liquid (adjustable)
Curing method: UV curing
Initial fixation time: 5 seconds
Hardness: A33 (adjustable)
Temperature range: -40 ℃~100 ℃
Packaging: 30ml, 50ml, 300ml, 1000ml
Model: UV-3206
Color: Transparent
Curing method: UV curing
Initial solidification time: 6S
Hardness: 12A
Refractive index: 1.5
Shrinkage rate:<3%
Packaging: 30ml, 50ml, 300ml, 1000ml
