PUR Hot Melt Adhesive: The “Flexible Bonding Expert” in Electronics Manufacturing
As electronic device

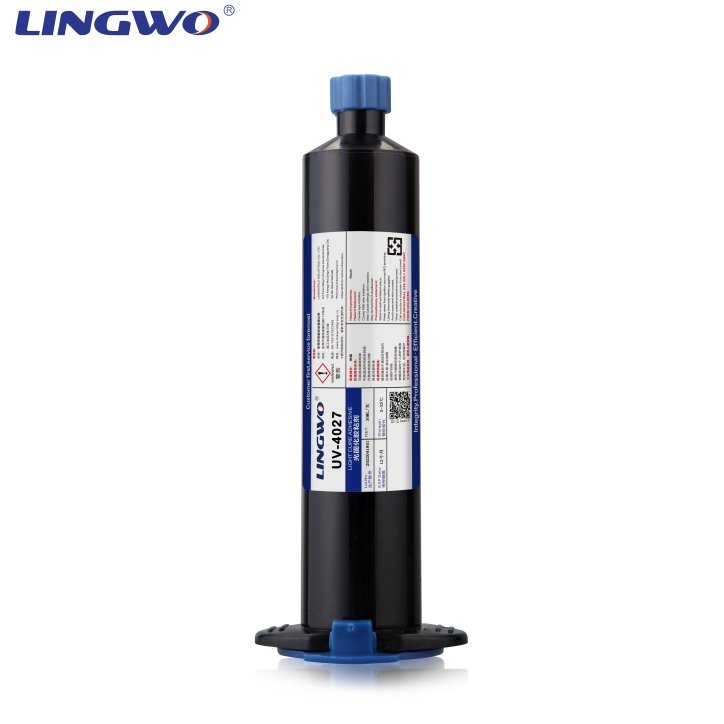

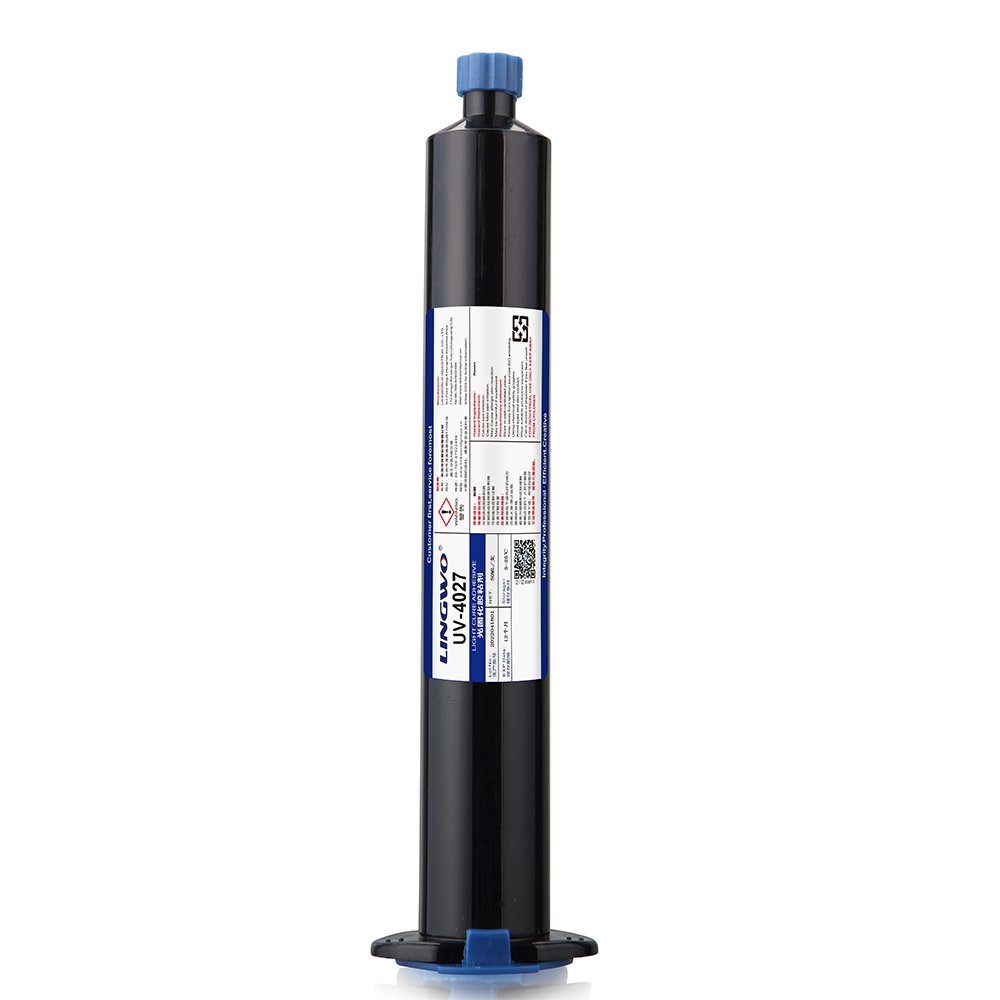

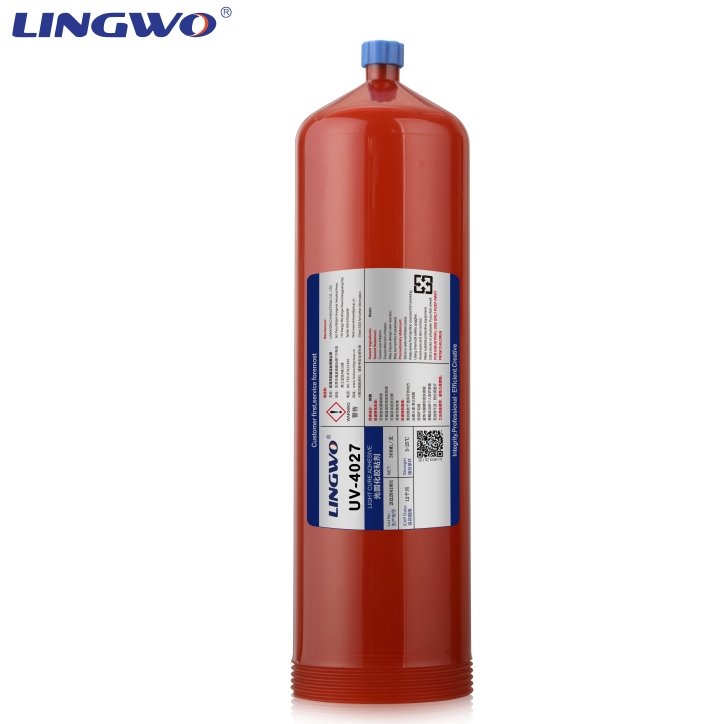

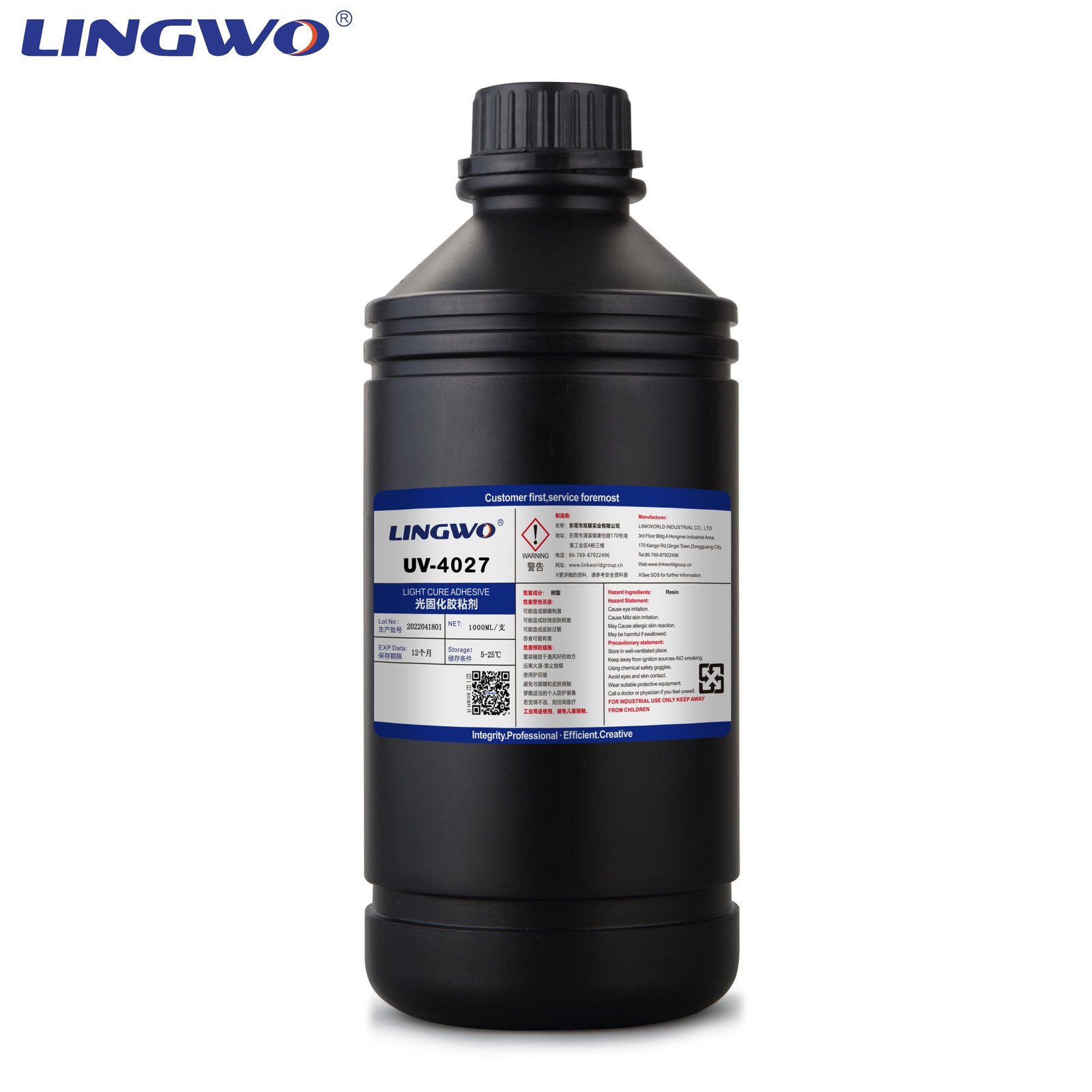

Model: UV-4027
Color: Transparent
Curing method: UV curing
Initial solidification time: 6S
Hardness: 36D
Temperature range: -54 ℃~125 ℃
Packaging: 30ml, 50ml, 300ml, 1000ml
No Documents
Phone: 18278134463 (Miss Liang)
Email: Jack@linkworldgroup.cn
Address: 5th Floor, Building 4, No. 459 Xiecao Road, Xiegang Town, Dongguan City
Have any Questions?
Feel free to Get in touch
Model: UV-4027
Color: Transparent
Curing method: UV curing
Initial solidification time: 6S
Hardness: 36D
Temperature range: -54 ℃~125 ℃
Packaging: 30ml, 50ml, 300ml, 1000ml
Product Features
Single component, low viscosity, high transmittance, no visible adhesive layer, 100% solvent-free.
Excellent adhesion, good surface dryness, resistance to cold and hot impacts, and flexible adhesive layer.
Stable physical properties, no yellowing or whitening for a long time.
Suitable occasions
This product is mainly used for bonding industrial, glass crafts, crystal crafts, electronic components, glass furniture, glass stainless steel, glass aluminum and other products.
Instructions for use
Preprocessing: To achieve the desired bonding performance, the surface of the material being bonded should be clean and free of grease. When using liquid adhesives to bond crystalline or semi crystalline thermoplastic materials, the possibility of stress cracking should be checked.
Glue application: This product should be dispensed using a glue dispenser with a black feeding tube.
Curing: This product is sensitive to ultraviolet radiation and can be cured under ultraviolet or visible light with sufficient intensity. The curing speed and final curing depth depend on the light intensity, spectral distribution of the light source, exposure time, and transparency of the adhesive material.
Color: Transparent
Viscosity (mPa·s): 1800–2200
Hardness (Shore D): 65-75
Volume Resistivity (Ω·cm): 7.5×10¹⁵–8.5×10¹⁵
Packgae: 50 g/tube, 20 pcs/bag, 1000 g/bottle, 9 bottles/carton.
Model: UV-4029
Color: Transparent/Red
Curing method: UV curing
Initial solidification time: 6S
Hardness: 62D
Dielectric constant: 2.0-2.8
Packaging: 30ml, 50ml, 300ml, 1000ml
Model: UV-4020
Color: Transparent
Curing method: UV curing
Initial solidification time: 6S
Hardness: A33
Temperature range: -54 ℃~120 ℃, short-term can be at 150 ℃
Packaging: 30ml, 50ml, 300ml, 1000ml
