PUR Hot Melt Adhesive: The “Flexible Bonding Expert” in Electronics Manufacturing
As electronic device

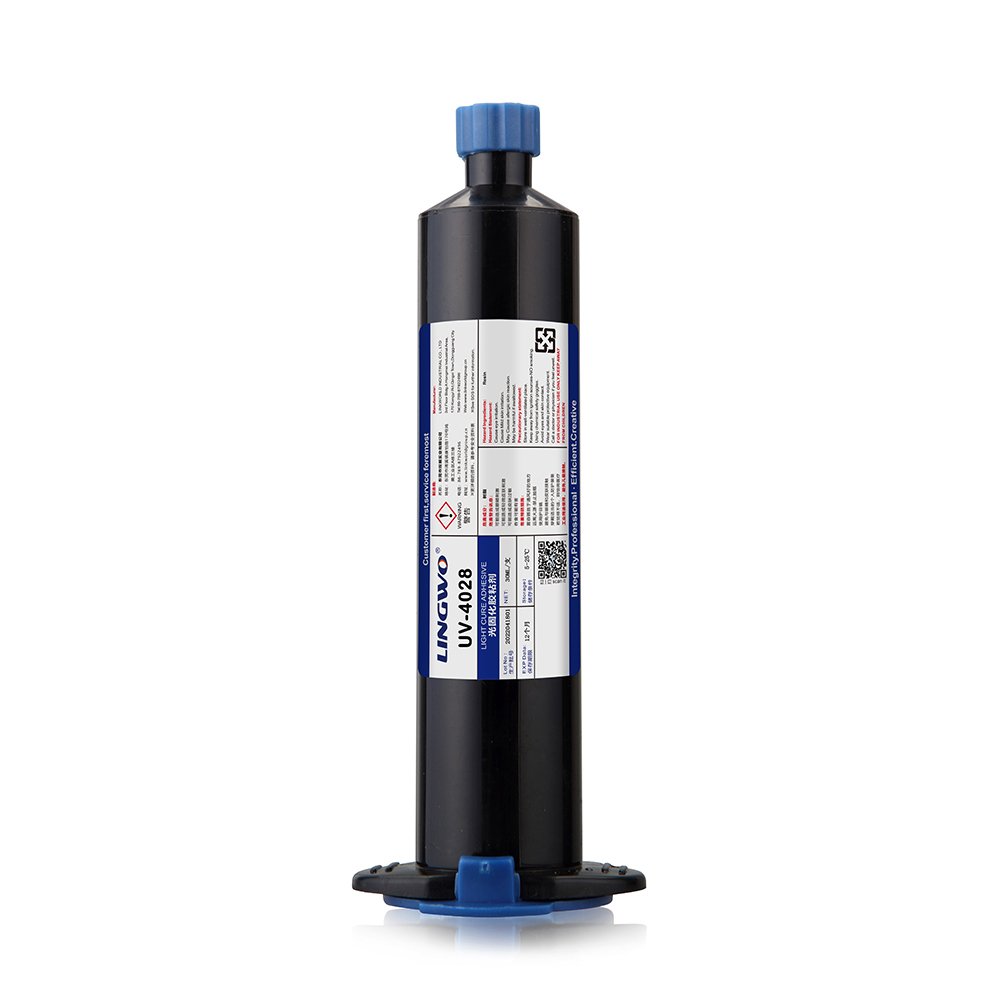

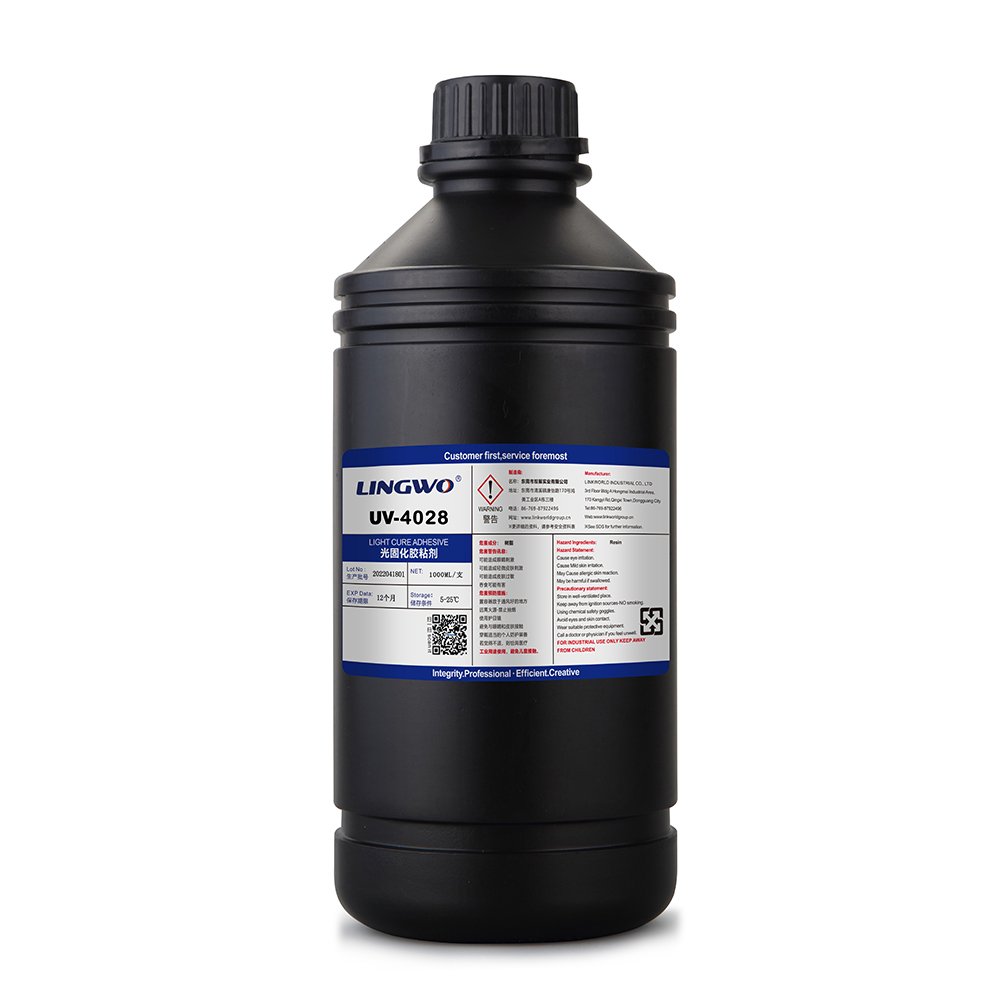

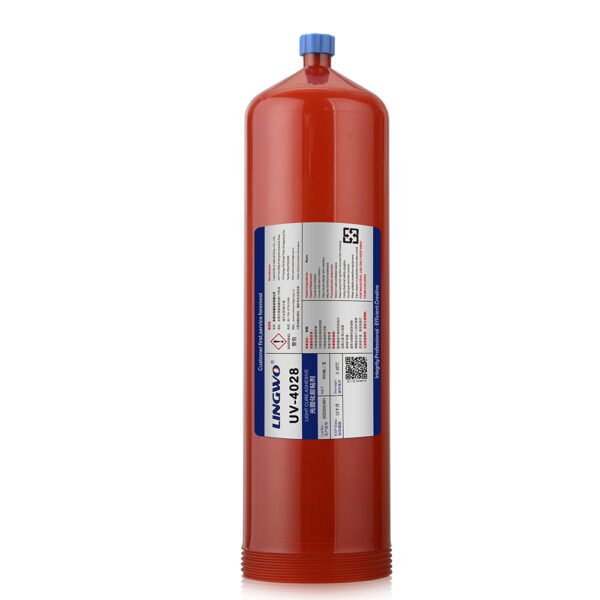

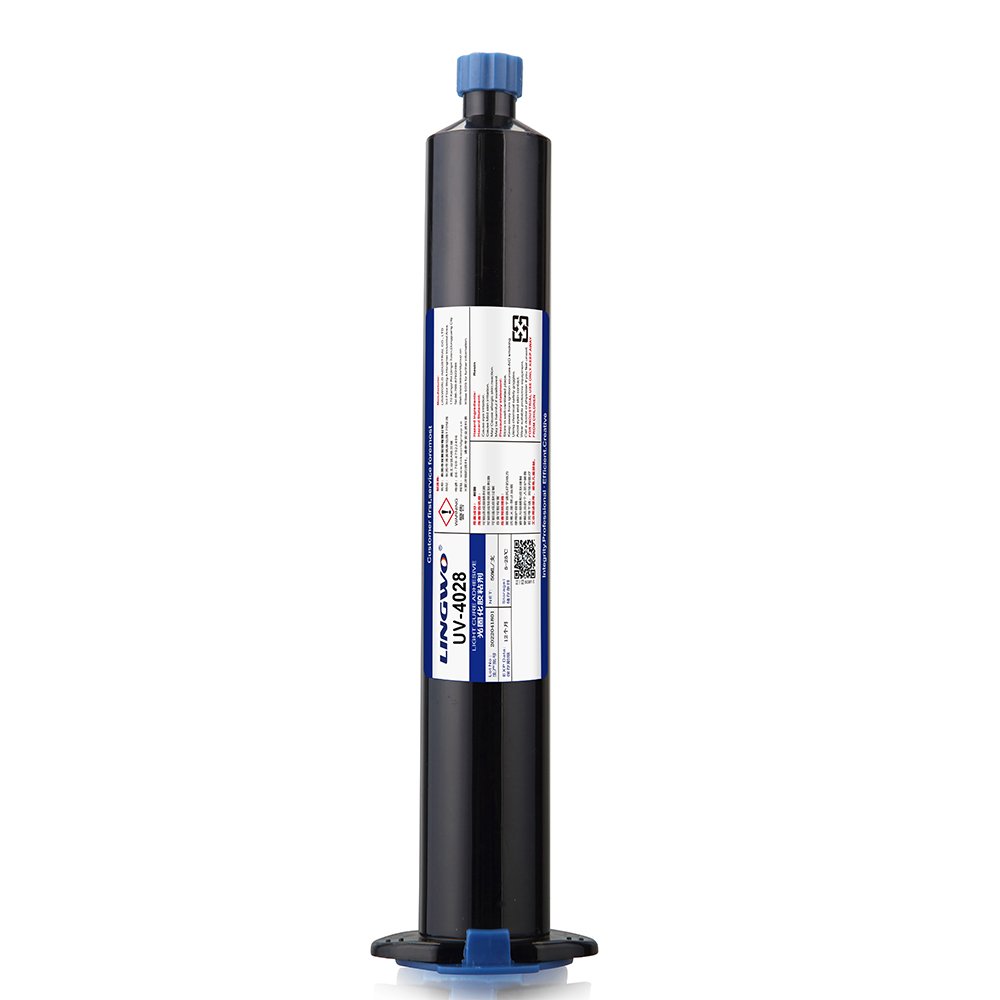

Model: UV-4028
Color: Transparent
Curing method: UV curing
Initial solidification time: 6S
Hardness: 70D
Temperature range: -54 ℃~125 ℃
Packaging: 30ml, 50ml, 300ml, 1000ml
No Documents
Phone: 18278134463 (Miss Liang)
Email: Jack@linkworldgroup.cn
Address: 5th Floor, Building 4, No. 459 Xiecao Road, Xiegang Town, Dongguan City
Have any Questions?
Feel free to Get in touch
Model: UV-4028
Color: Transparent
Curing method: UV curing
Initial solidification time: 6S
Hardness: 70D
Temperature range: -54 ℃~125 ℃
Packaging: 30ml, 50ml, 300ml, 1000ml
Product Features
Single component, low viscosity, good permeability, good surface dryness, 100% solvent-free
Micro thixotropy, convenient for construction, excellent adhesive strength
Resistant to cold and hot impacts, flexible adhesive layer, and stable physical properties
Suitable occasions
This product is mainly used for reinforcing, sealing, and fixing electronic cables, as well as for sealing, moisture-proof, insulating, protecting, and fixing electronic materials. Suitable for sealing and reinforcing materials such as electronic wiring terminals and flexible circuit boards. In addition, this product exhibits good adhesion properties to most substrates, including glass, plastic, and most metals.
Instructions for use
Preprocessing: To achieve the desired bonding performance, the surface of the material being bonded should be clean and free of grease. When using liquid adhesives to bond crystalline or semi crystalline thermoplastic materials, the possibility of stress cracking should be checked.
Glue application: This product should be dispensed using a glue dispenser with a black feeding tube.
Curing: This product is sensitive to ultraviolet radiation and can be cured under ultraviolet or visible light with sufficient intensity. The curing speed and final curing depth depend on the light intensity, spectral distribution of the light source, exposure time, and transparency of the adhesive material.
Type: UV Adhesive
Color: Red
Viscosity: 9000-14000CPS
Hardness (Shore D): 78
Package:30g, 50g, 250g, 1kg, 20kg
Model: UV-4029
Color: Transparent/Red
Curing method: UV curing
Initial solidification time: 6S
Hardness: 62D
Dielectric constant: 2.0-2.8
Packaging: 30ml, 50ml, 300ml, 1000ml
Model: UV-4020
Color: Transparent
Curing method: UV curing
Initial solidification time: 6S
Hardness: A33
Temperature range: -54 ℃~120 ℃, short-term can be at 150 ℃
Packaging: 30ml, 50ml, 300ml, 1000ml
